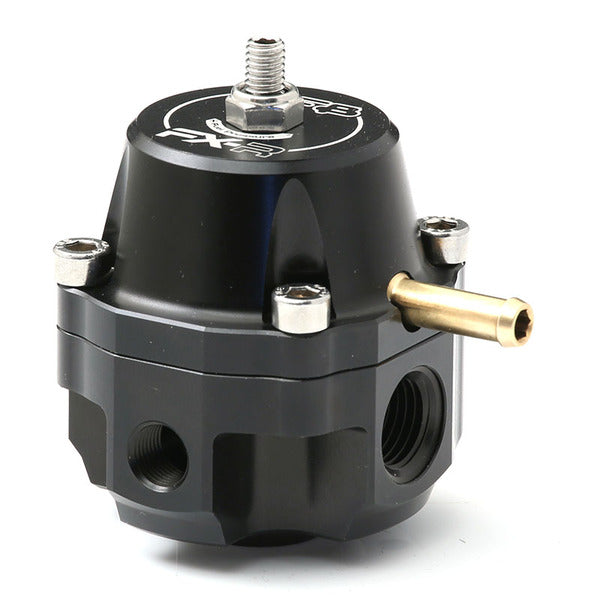

GFB FX-R Fuel Pressure Regulator

FEATURES:

2x -6AN inlet port, 2x 1/8” NPT pressure gauge/sensor ports, and 1x -6AN return port

Flows up to 1300 litres per hour @ 25psi

1:1 fuel pressure rise rate

Double layer/double reinforced diaphragms with a burst strength exceeding 500psi

Teflon co-polymer seat with spherical stainless valve to retain fuel pressure longer after shut down

Spring pre-load adjustment screw is o-ring sealed and does not leak vacuum/boost

Static pressures adjustable from 25psi to 80psi

Completely serviceable
