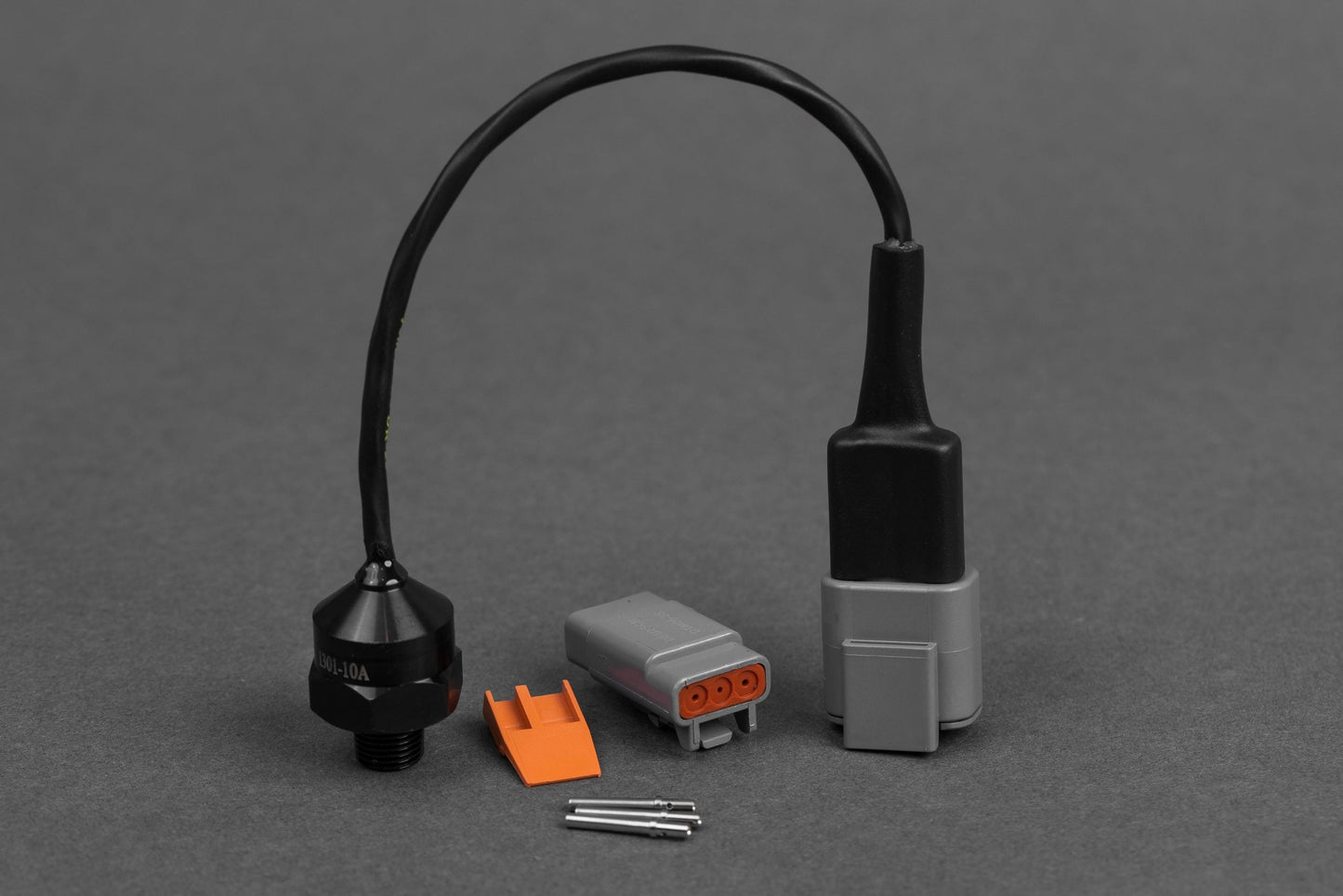

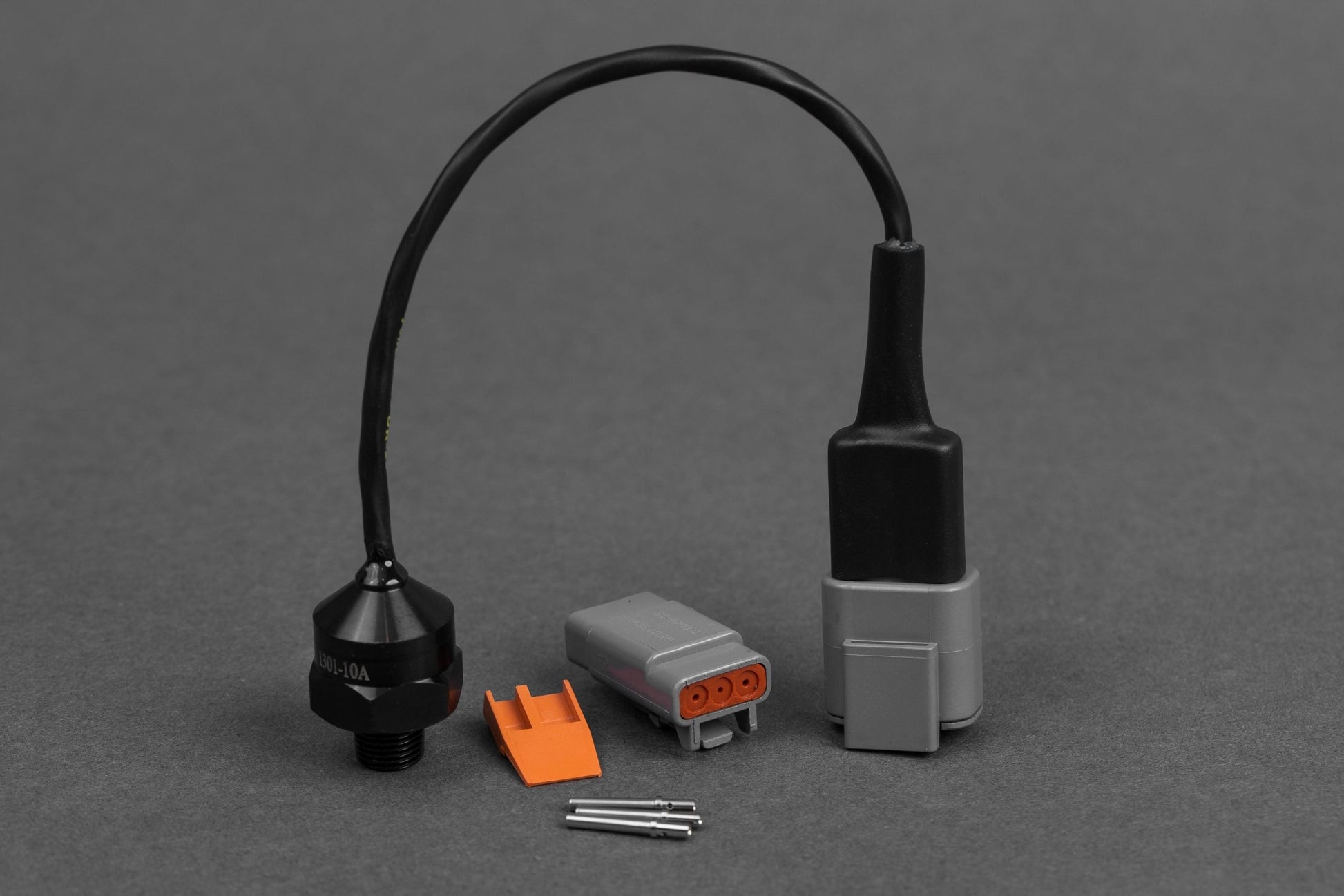

Emtron 1.0 Bar MAP Sensor Kit

The Emtron 1.0 Bar MAP Sensor uses a state-of-the-art piezoresistive transducer from NXP Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure. Genuine NXP Sensor Pressure Range: 15kPa to 115kPa Supply Voltage: 4.75 to 5.25 Volts DC Current Supply 6.0mA Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol. Fully calibrated and temperature compensated from -40 DegC to +125 DegC Response time 1ms Compact Design Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance Fully potted for a waterproof seal and resistance to shock and vibration 1/8 NPT Thread Deutsch 3 Way Connector (mating end also supplied)
