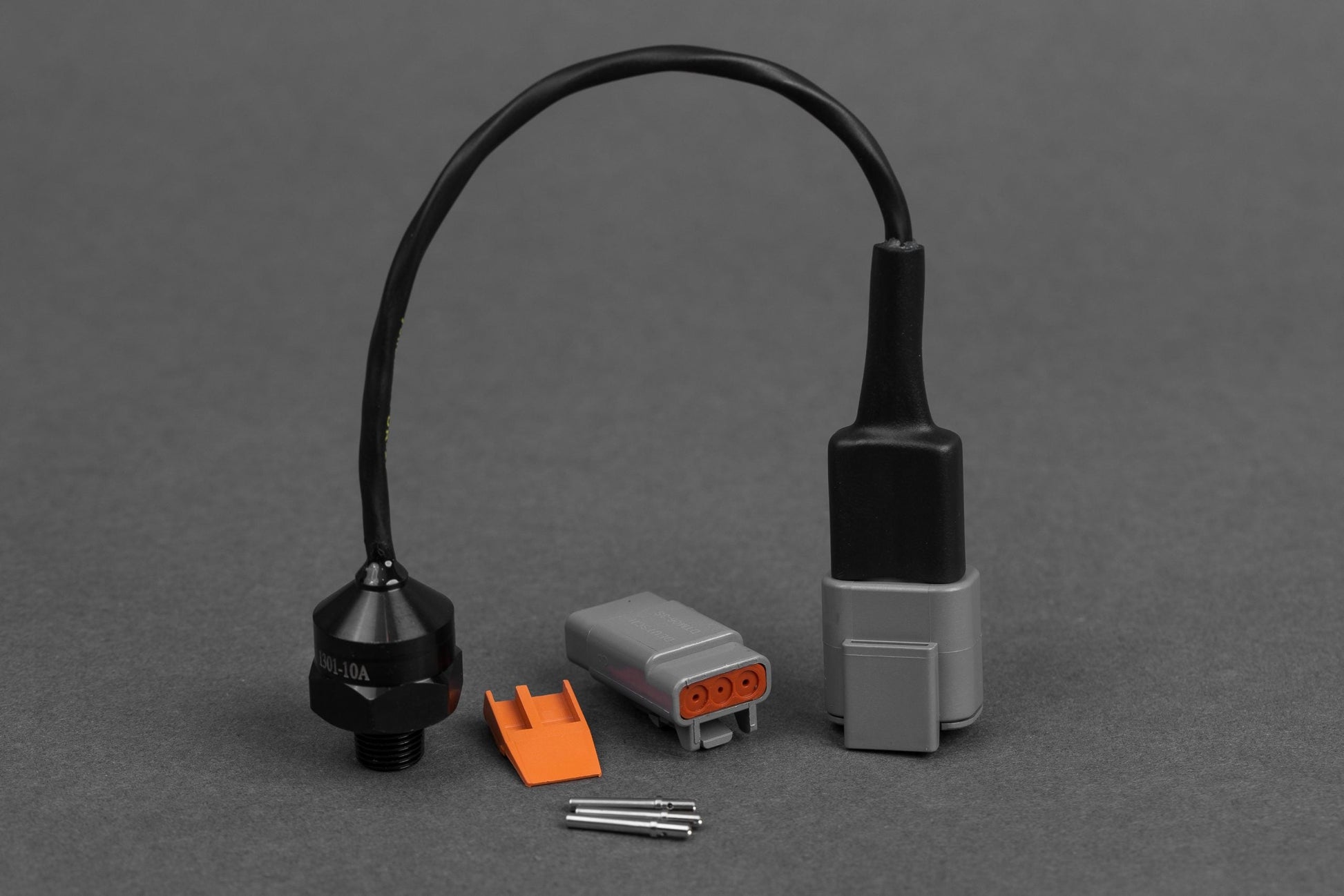

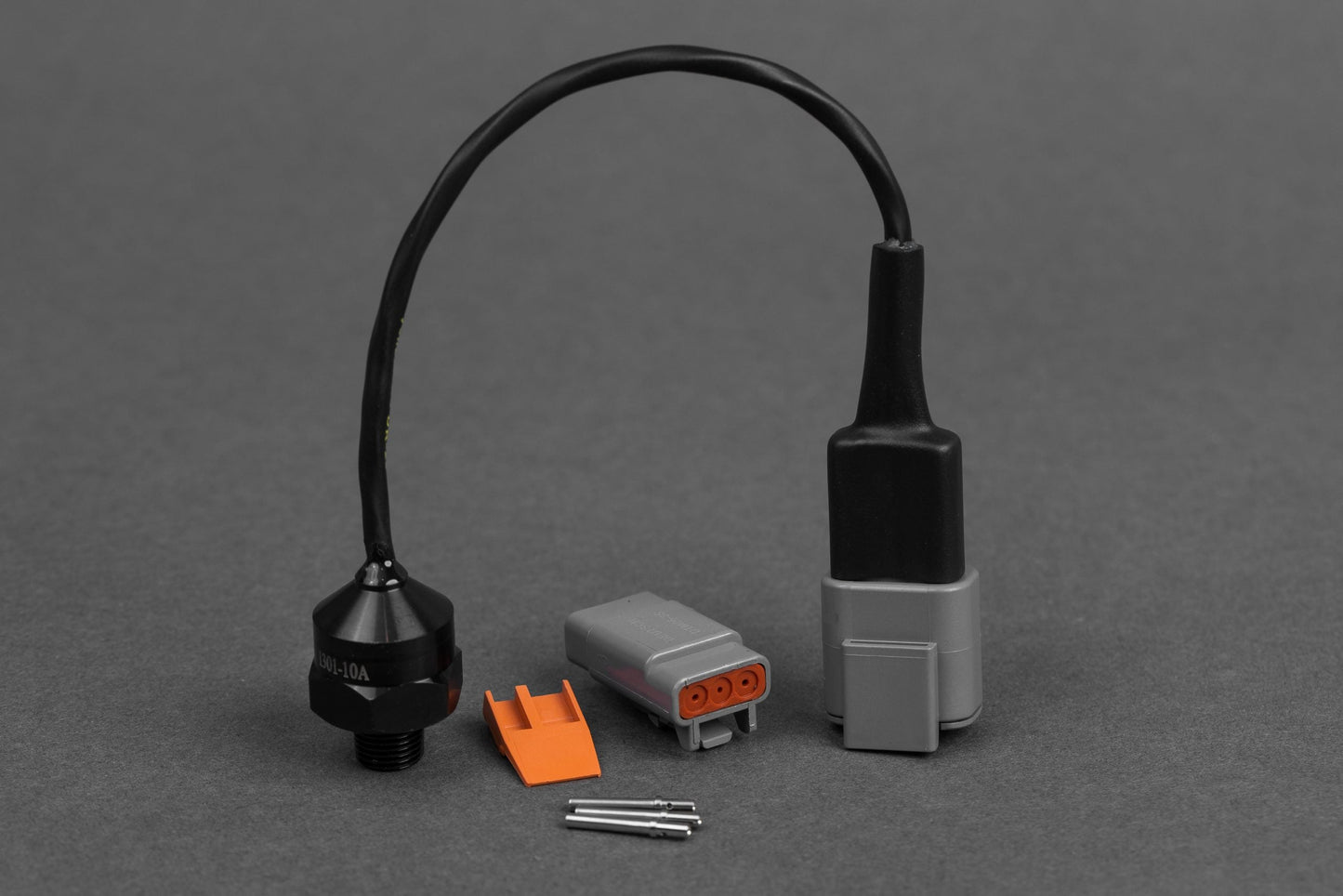

Emtron 4.0 Bar MAP Sensor Kit

The Emtron 4.0 Bar MAP Sensor is a state-of-the-art, high temperature, media resistant absolute pressure sensor. It is highly accurate, providing an analog output signal proportional to the pressure applied. Features: Genuine NXP Pressure Sensor Pressure Range: 20kPa to 400kPa Max Supply Voltage: 4.70 to 5.30 Volts DC Output Type: Amplified, Ratiometric 0.0V - 5.0V Current Supply 6.0mA Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol Fully calibrated and temperature compensated from -40 DegC to +125 DegC Response time 1ms Media Type: Air Compact Design Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance 1/8 NPT Thread DTM 3 Way Connector(mating end also supplied) Fully potted for a waterproof seal and resistance to shock and vibration Emtron MAP Sensor 4.0 Bar Data Sheet
